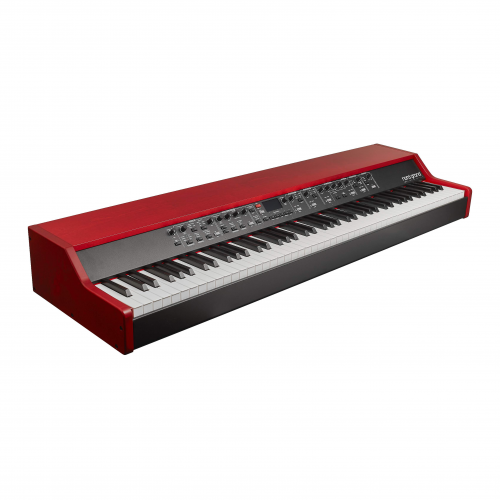

Nord
Grand

The grand stage experience

The Nord Grand features a premium weighted keybed with advanced triple sensors that capture the movements of the hammers with exceptional precision, delivering the smooth and natural feel of an acoustic grand piano.

Nord Grand Digital Stage Piano Key points

  • 88-note Kawai Hammer Action with advanced triple sensors
  • Ivory touch keys
  • 2 GB memory for Nord Piano Library
  • 120 Voice Polyphony
  • Dedicated Piano Filters for Acoustic and Electric Pianos
  • 512 MB Memory for Nord Sample Library 3.0

Free Gifts

  • Limited edition PBE leather journal cover

Comes With

  • Power adapter
  • Pedals
  • Free delivery within 2 working days
  • 1 year local Clavia Nord (Singapore) warranty

Purchase online at

Additional information

Number of keys

88

Action

Kawai Hammer Action (HA)

Key material

Simulated ebony and ivory keys

Sound technology

Nord Piano, Nord Sample Synth

Polyphony

120, 46

Tones

Nord Grand Library, Nord Piano Library, Nord Sample Library

Amplifier output

Not applicable

Speaker size

Not applicable

Colour

Red

Piano stand

Not included

Dimensions and Weight

1,122 x 347 x 127 mm, 12.5 kg

Description

The Nord Grand features a premium weighted keybed with advanced triple sensors that capture the movements of the hammers with exceptional precision, delivering the smooth and natural feel of an acoustic grand piano.

Incorporating the award-winning performance features and hands-on user interface the lightweight Nord Grand not only provides an extraordinary playing experience, but is also an elegant new approach to the stage piano series.



Full Specifications

GLOBAL
OLED Display
Seamless Transitions
Split Point Crossfades
16 banks with 25 programs – 400 locations
Organize functionality for programs
Live Mode – 5 Live programs
Global Transpose: +/- 6 semitones
Program Transpose: +/- 6 semitones
Fine-tune: +/- 50 Cents
Kbd Touch: 3 velocity response curves
88-note Kawai Responsive Hammer keybed with Advanced Triple Sensors
Split functionality with selectable split point and LED indication
Optional Split crossfade
Layer functionality
Panel Lock option
Mono Output option
Dynamic Sustain Pedal action with the included Nord Triple Pedal
USB-MIDI
Free OS updates
PIANO SECTION
6 types – Grand, Upright, Electric Pianos, Clavinet, Digital and Misc.
Each category can contain up to 20 different models.
120 Voice Polyphony (stereo/mono pianos)
Piano Timbre/EQ settings (Soft, Mid, Bright) with dedicated Electric Piano filters (Soft, Mid, Bright, Dyno 1 and Dyno 2).
Advanced String Resonance (Generation 2) – adjustable amount
Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord
Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 – adjustable amount
Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
SAMPLE SYNTH SECTION
46 Voice Polyphony
Amp envelope with Attack and Decay/Release
Selectable velocity sensitive low pass filter and dynamic range
Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
Volume controllable with Volume Pedal (not included)
MEMORY
Approx. 2 GB dedicated to the Nord Piano Library
Approx. 512 MB dedicated to the Nord Sample Library 3.0
EFFECTS SECTION
Effect 1
Pan, Tremolo, Wah and Ring Modulator
Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal
Effect 2
Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
Two selectable depths for each effect
Amp Simulations, Comp and EQ
Comp/Amp – three amp/speaker simulations, Tube Overdrive
Drive/Compression amount controlled with the Drive knob
Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
Master Effects
Dedicated Reverb with Room, Stage and Hall algorithms, each with an additional Bright mode
Dedicated Delay Effect – Rate, Amount and Tap-tempo function
CONNECTIONS
2 Audio outputs L & R – ¼”, 6,35 mm jacks, unbalanced
1 Monitor input – 1/8″, 3,5 mm stereo jack
1 Headphone output – ¼”, 6,35 mm stereo jack
1 Piano pedal input – ¼”, 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc
1 Volume Pedal input – ¼”, 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
MIDI In, MIDI Out – 5 pin DIN connectors
USB – type B connector – for transferring sounds and USB MIDI
IEC C14 power connector
DIMENSIONS
Nord Grand: 1286 mm (50.7″), 168 mm (6.6″), 387 mm (15,2″)
Nord Triple Pedal: 264 mm (10.4″), 224 mm (8.8″), 70 mm (2.8″)
WEIGHT
Nord Grand: 20,9 kg (46.0 lbs)
Pedal: 2 kg (4.4 lbs)
INCLUDED ACCESSORIES
Nord Triple Pedal
User Manual
Power cord
OPTIONAL ACCESSORIES
Nord Piano Monitor
Nord Keyboard Stand V2
Nord Soft Case
Nord Music Stand
Dust Cover
×
