SKU Stage-2-EX-HP76 Categories Clavia Nord, Digital Pianos, Stage Pianos, Stage Series Tags digital pianos, Nord, popular, portable, stage, stage pianos
Nord

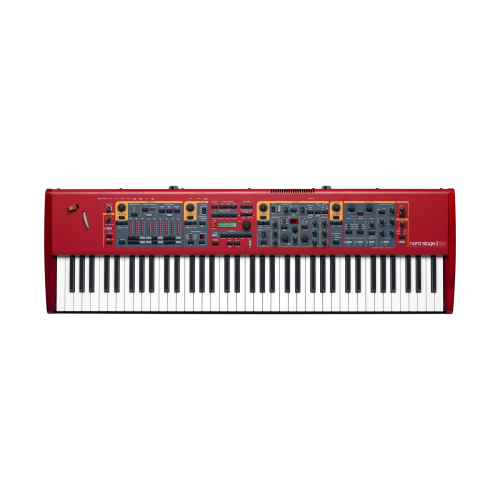

Stage 2 EX HP76
The ultimate instrument for any performing musician
The Nord Stage 2 EX HP76 is an outstanding new flagship instrument features the latest award-winning technologies including the Nord Lead A1 Synth Engine with sample playback, the acclaimed Nord C2D organ, a greatly enhanced Piano Section and extensive hands-on Effects – all in one exceptional performance keyboard.
Nord Stage 2 EX HP76 Keys Digital Stage Piano Key points
- Massive sonic flexibility with piano, organ, and synthesizer sounds that can be used simultaneously
Review
Its no menu diving/live focused approach is still hard to beat and the sounds/facilities are top-notch – MusicRadar
Free Gifts
- Limited edition PBE leather journal cover
Comes With
- Power adapter
- Pedals
- Free delivery within 2 working days
- 1 year local Clavia Nord (Singapore) warranty
Purchase online at
Additional information
| Number of keys | 76 |
|---|---|
| Action | Fatar Hammer Portable (HP) |
| Key material | Matte plastic |
| Sound technology | Nord Organ, Nord Piano, Nord Sample Synth |
| Polyphony | 40 |
| Tones | Nord Piano Library, Nord Sample Library |
| Amplifier output | Not applicable |
| Speaker size | Not applicable |
| Colour | Red |
| Piano stand | Not included |
| Dimensions and Weight | 1,122 x 347 x 127 mm, 12.4 kg |
Description
The Nord Stage 2 EX HP76 updates the flagship instrument line with 1 GB memory for the Nord Piano Library and a new ultra lightweight Hammer Action Portable HP76 model.
The outstanding new Factory Bank features 5 Grand Pianos, 7 Upright Pianos, 11 Electric Pianos, Clavinet, Harpsichords and a vastly improved Nord Sample Library selection including great new Strings, Choir and Folk instruments.
The Nord Stage 2 EX features the award winning Piano, Organ and Synthesizer technologies combined with a well thought-out, user friendly interface, a choice of premium keybeds and an almost obsessive level of quality control. The Stage 2 EX truly sets itself apart as an instrument for the professional performing musician.
Check out the updated version, the Clavia Nord Stage 3 88
Full Specifications
| GENERAL | Master Level Control |
| Wooden Pitch Stick | |
| Modulation Wheel | |
| 400 Programs – 4 Banks with 20 Pages each. Each Page has 5 Program locations | |
| Program Categories | |
| Program Sort Modes – numerical, alphabetical or by category | |
| 5 Live Buffers | |
| 2 Individual Slot Setups | |
| 3 Morph sources (Modulation Wheel, Control Pedal, Aftertouch) | |
| Global Mono output | |
| Programmable Transpose +/- 6 semitones | |
| Master Clock functionality with manual, external and tap-tempo rate control | |
| Internal and MIDI clock source | |
| MIDI over USB functionality | |
| ORGAN SECTION | B3 Tone wheel Organ, Vox Continental and Farfisa models with full polyphony |
| 9 digitally controlled Drawbars | |
| Percussion controls | |
| Vibrato / Chorus control | |
| Two Drawbar settings per program | |
| 2-Part Multitimbral (2 manuals) | |
| PIANO SECTION | 1 GB memory for Piano sounds |
| Acoustic Grand Pianos | |
| Upright Pianos | |
| Electric Pianos | |
| Synth Pianos | |
| Wurlitzer A200 Electric Piano | |
| Clavinet D6 | |
| Harpsichords | |
| Electric Grand Pianos incl. CP-80 | |
| 40-60 Voices Polyphony | |
| 4 Selectable Velocity Curves | |
| Clavinet EQ controls | |
| String Resonance (Generation 2) on acoustic Grand Pianos and Uprights | |
| Selectable Piano Release | |
| Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos | |
| Slot Detune functionality | |
| 2-Part Multitimbral | |
| SYNTH SECTION | Sample Playback synthesis: approx. 380 Megabytes of sample memory, up to 999 Sample Instruments. |
| Analog synthesis: Multiple waveforms – including Dual Saw, Hard Sync and PWM | |
| FM synthesis: 2 & 3 Operator FM synthesis | |
| Wavetables synthesis: 62 waveforms | |
| 18 Voices polyphony | |
| Unison control – with no reduction in polyphony | |
| Amplitude envelope | |
| Modulation envelope | |
| 12 & 24 dB Low Pass, High Pass, Band Pass and Notch Filter with Resonance | |
| LFO with 4 waveforms (square, triangle, ramp and sample & hold) | |
| 300 Patch memory locations | |
| Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves. | |
| LFO and Arpeggiator synchronizable to Master Clock | |
| 2-Part Multitimbral | |
| GLOBAL PARAMETERS | Level control |
| Zone (split assignment) control | |
| EFFECTS | Effect 1: Ring Modulator, Tremolo, Pan, Wah, AutoWah 1, Autowah 2 |
| Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses | |
| Delay – with Ping Pong (stereo taps) and Tap-Tempo | |
| 3 types of Speaker simulations, JC, Twin and Small | |
| Tube amp simulation with adjustable overdrive | |
| 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz – 8 kHz and 4 kHz | |
| Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive | |
| Effect rates/tempo can be synchronized to the Master Clock | |
| MASTER EFFECTS | Compressor |
| Reverb – 6 algorithms | |
| KEYBOARD | HA88-model: 88-key Velocity sensitive Hammer Action keyboard. Range: A-C, |
| | |
| Compact-model: 73-key Velocity sensitive Semi Weighted Waterfall keyboard. Range: E-E | |
| Aftertouch | |
| Supports 3 split zones with visual LED indication | |
| CONNECTIONS | 4 Assignable Audio Outputs – ¼”, 6,35 mm jacks, unbalanced |
| Stereo Headphone output – ¼”, 6,35 mm stereo jack | |
| 1 Monitor input – 1/8″, 3,5 mm stereo jack | |
| Sustain Pedal – ¼”, 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc. | |
| Sustain input compatible with Nord Triple Pedal (sold separately) | |
| Rotor Pedal – ¼”, 6,35 mm jack. Use a momentary pedal or a switch type pedal | |
| Organ Swell Pedal – ¼”, 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc. | |
| Control Pedal – ¼”, 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc. | |
| MIDI In – 5 pin DIN connectors | |
| MIDI Out – 5 pin DIN connectors | |
| USB – type B connector | |
| Power Cord with IEC C14 connector | |
| INCLUDED ACCESSORIES | User Manual |
| Dust cover (88 and HP76 only) | |
| Sustain pedal (88 and HP76 only) | |
| Power cord | |
| Nord Sample and Piano DVDs | |
| USB cord | |
| OPTIONAL ACCESSORIES | Nord Keyboard Stand EX |
| Nord Soft Case | |
| Nord Triple Pedal | |
| Nord Music Stand EX | |
| DIMENSIONS | Nord Stage 2 EX 88: 1287 mm (50.7″), 118 mm (4.7″), 334 mm (13″) |
| Nord Stage 2 EX HP76: 1122 mm (44″), 127 mm (5″), 347 mm (13,6″) | |
| Nord Stage 2 EX Compact: 1070 mm (42″), 104 mm (4″), 302 mm (12″) | |
| WEIGHT | Nord Stage 2 EX 88: 18,5 kg (40,7 lb) |
| Nord Stage 2 EX HP76: 12,4 kg (27,3 lb) | |
| Nord Stage 2 EX Compact: 9,7 kg (21,4 lb) |
