Sale!

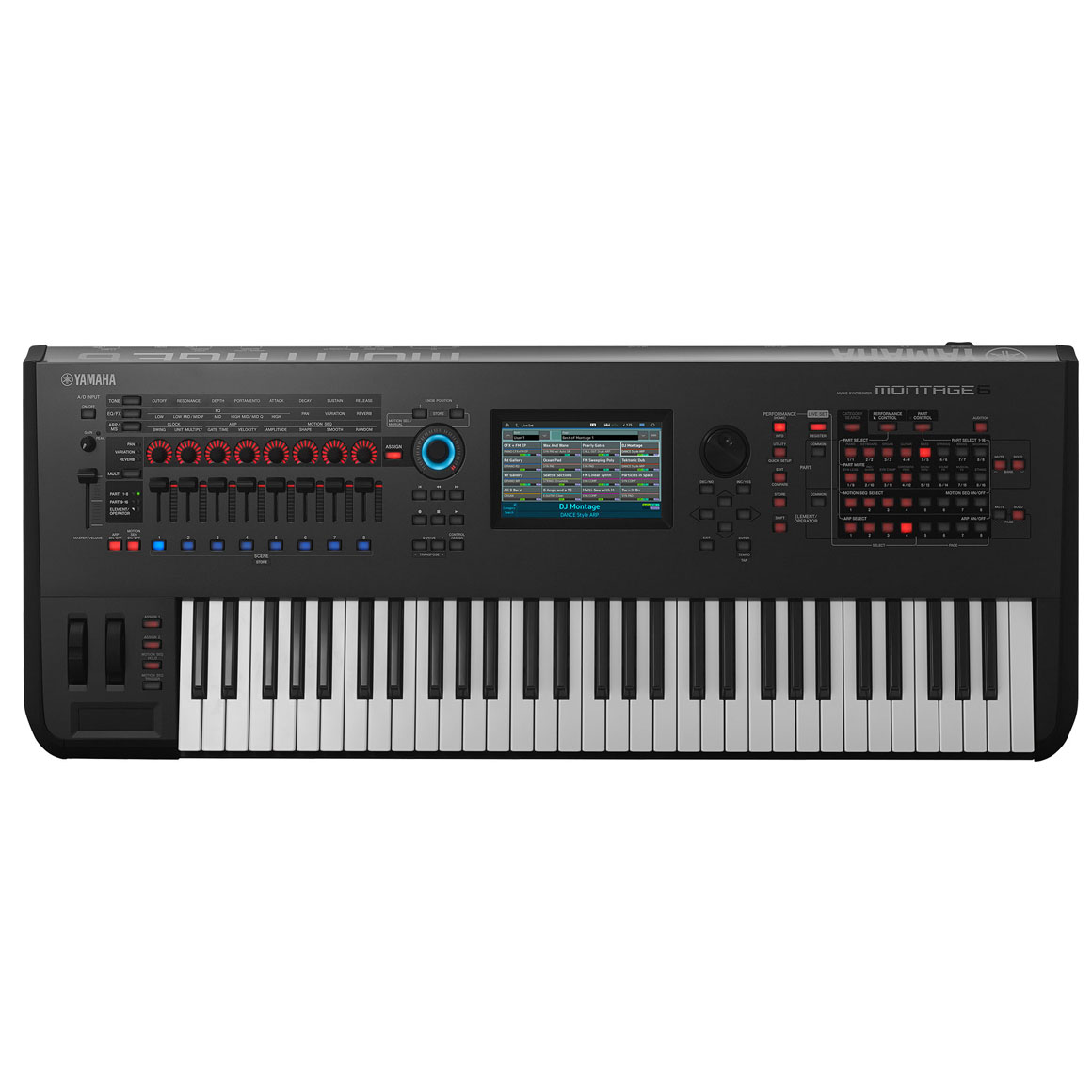

Yamaha MONTAGE 6 Synthesizer Keyboard product top

Yamaha
MONTAGE 6

Sophisticated Dynamic Control

Music is expression. MONTAGE adds a new level of expression with the Motion Control Synthesis Engine. This engine allows a variety of methods to interact with and channel your creativity into finding your own unique sound.

Yamaha MONTAGE 6 Synthesizer Keyboard Key points

  • Motion Control Synthesis Engine, find tune your creativity into finding your own unique sound
  • 128 note polyphony for dropout free performances even with multi-layered effects

Free Gifts

  • Limited edition PBE leather journal cover

Comes With

  • Power adapter
  • Free Delivery
  • 1 year local Yamaha (Singapore) warranty

Purchase online at

SKU MONTAGE-6 Categories , , Tags , , , ,

Additional information

Number of keys

61
Action

FSX Action
Key material

Matte plastic
Sound technology

Yamaha Advanced Wave Memory 2 (AWM2) Stereo Sampling, Yamaha FM-X
Polyphony

128
Tones

Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.75 GB
Amplifier output

Not applicable
Speaker size

Not applicable
Colour

Black
Piano stand

None
Dimensions and Weight

1,037 x 396 x 131 mm, 15.0 kg

Description

Welcome to the new era from the company that brought you the DX and the Motif. Yamaha MONTAGE 6 synthesizers sets the next milestone with sophisticated dynamic control, massive sound creation and streamlined workflow.

Motion Control Synthesis Engine

Motion Control Synthesis Engine unifies and controls two iconic Sound Engines: AWM2 (high-quality waveform and subtractive synthesis) and FM-X (modern, pure Frequency Modulation synthesis.) These two engines can be freely zoned or layered across eight parts in a single MONTAGE Performance.

Interact with MONTAGE Performances using Motion Control: a highly programmable control matrix for creating deep, dynamic and incredibly expressive sound. With Motion Control, you can create new sounds not possible on previous hardware synthesizers.



Full Specifications

Size/Weight
Dimensions
 Width
1,037 mm (40-13/16″)
Height
131 mm (5-3/16″)
Depth
396 mm (15-9/16″)
Weight Weight
15 kg (33 lbs., 1 oz.)
Control Interface
Keyboard
 Number of Keys 61
Type FSX Keyboard
Initial Touch Yes
Aftertouch Yes
Tone generator
Tone Generator
Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms
Maximum Polyphony
AWM2: 128 (max.; stereo/mono waveforms) FM-X: 128 (max.)
Multi Timbral Capacity
16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part
Wave
Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.75 GB
Performance 2,707
Filter 18 types
Effects
Reverb x 12 types, Variation x 88 types, Insertion (A, B) x 88 types*, Master Effect x 26 types *A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)
Other
Controllers
Master Volume, AD Input Gain knob, Pitch Bend wheel, Modulation wheel, Ribbon Controller, Control Sliders x 8, Knobs x 8, Super Knob, Data dial
Display
7″ TFT Color Wide VGA LCD touch screen
Connectors
[USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT]/[THRU], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT (BALANCED) [L/MONO]/[R] (6.3 mm, Balanced TRS jacks), ASSIGNABLE OUTPUT (BALANCED) [L]/[R] (6.3 mm, Balanced TRS jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)
Power Consumption 27 W
Accessories
AC Power cord, Owner’s Manual, Cubase AI Download Information
Live Sets
Preset: 128 and more, User: 2,048
Performance Recorder
Tracks
16 Sequence tracks, Tempo track, Scene track
Recording type
Real time replace, Real time overdub, Real time punch in/out
Note Capacity
1 Song/Pattern: Approx. 130,000 notes, Store area: Approx. 520,000 notes (Pattern); approx. 520,000 notes (Song)
Note Resolution
480 ppq (parts per quarter note)
Tempo (BPM) 5 – 300
Arpeggio
Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types
Sequence formats
MONTAGE original format, SMF formats 0, 1
Sequencer
Patterns 128 patterns
Pattern tracks
16 Sequence tracks
Pattern Recording type
Real time replace, Real time overdub
Songs 128 songs
Song tracks
16 Sequence tracks, Tempo track, Scene track
Song recording type
Real time replace, Real time overdub, Real time punch in/out
Functions
USB audio interface
[Sampling Frequency = 44.1kHz] Input: 6 channels (3 stereo channels),Output: 32 channels (16 stereo channels) [Sampling Frequency = 44.1kHz – 96kHz] Input: 6 channels (3 stereo channels),Output: 8 channels (4 stereo channels)
